Creative Sound Blaster AE-9 Ultimate 32-bit / 384 kHz PCI-e Sound Card and DAC

  • Hi-Res PCIe Sound Card and DAC
  • Supports 5.1- & 7.1-Channel Surround
  • ESS SABRE-Class 9038 DAC
  • Playback: 32-Bit / 384 kHz PCM & DSD64

49,999.00 Including Tax & Delivery

Compare
SKU:70SB178000000
Weight

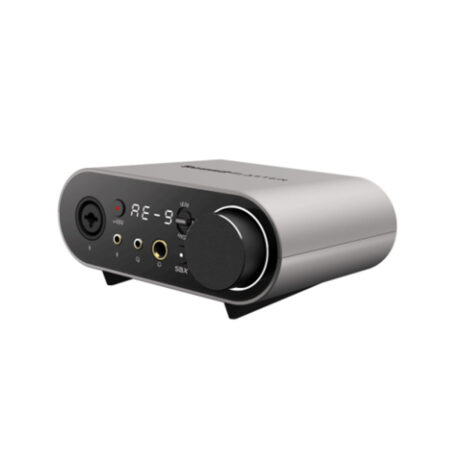

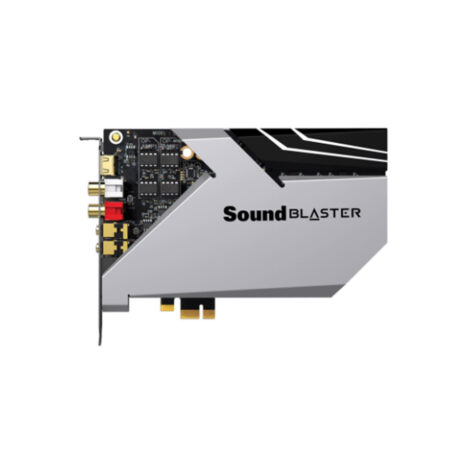

  • Main Card: 230g, Audio Control Module
  • (ACM): 480g
Dimensions Main Card: 178 x 22 x 127 mm, Audio Control Module (ACM): 150 x 128 x 65 mm
Headphone Amp Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω, IEM: 16–31Ω (1.5V Rms), Normal: 32–149Ω (3V Rms), High Gain: 150–600Ω (5.3V RMS)
Audio Technology Direct Mode

  • Playback Resolution (Stereo): PCM 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, PCM 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, PCM 32-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, DSD64 (2.8 MHz)
  • Playback Resolution (Optical Out): 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz
  • Playback Resolution (Surround 5.1): PCM 16-bit / 48.0, 96.0, 192.0kHz, PCM 24-bit / 48.0, 96.0, 192.0kHz
Recording Resolution
  • Mic-in: 16-bit / 16.0, 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz, 32-bit / 44.1, 48.0, 88.2, 96.0 kHz
  • AUX-in: 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz
  • Optical In: 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz
DSP Mode Playback Resolution (Stereo & Surround 5.1)
16-bit / 44.1, 48.0, 88.2, 96.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0kHz, 32-bit / 44.1, 48.0, 88.2, 96.0kHz
Platform PCI-e

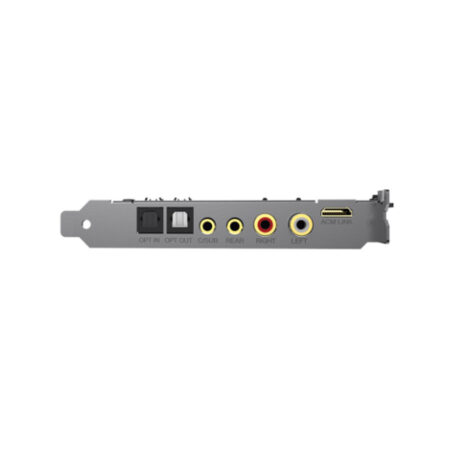

Connectivity Options (Main) 1 x TOSLINK Optical In, 1 x TOSLINK Optical Out, 1 x ⅛″ Rear Out, 1 x ⅛″ Center / Sub Out, 1 x ACM Link, 1 x 6-pin PCI Express (PCI-e) Power Header (required for ACM), 2 x RCA (L/R) Front Out
Connectivity Options (Accessory)
  • 2 x RCA (L / R)
  • 1 x ⅛″ Mic-in (Mono)
  • 1 x ⅛″ HP Out (3-pole)
  • 1 x ¼″ HP Out (3-pole)
Power PCI-e bus power, +12V for ACM (requires 6-pin PCI Express power connector from PC power supply)
System Requirements Windows® OS

  • Intel® Core™ i3 AMD® equivalent processor
  • Intel, AMD or 100% compatible motherboard
  • Microsoft® Windows 11, Windows 10 32 / 64 bit, Windows 8.1/8.0 32 / 64 bit, Windows 7 32 / 64 bit
  • 1GB RAM
  • >600 MB of free hard disk space
  • Available PCIe slot
  • Available PCI Express Power Connector for Audio Control Unit
  • PC Power Supply Unit must be 80Plus Bronze Certified with minimum 500 Watt power output and 2 x 6 Pin PCI Express power connector
Package Contents
  • Sound Blaster AE-9 (main card)
  • Audio Control Module
  • Quick Start Leaflet
  • Warranty Leaflets
  • 1 x 3.5mm Male to 2-Male RCA cable
  • 1 x 3.5mm Female to 2-Male RCA cable
  • 1 x Optical TOSLINK cable
Warranty 1-year Limited Hardware Warranty
