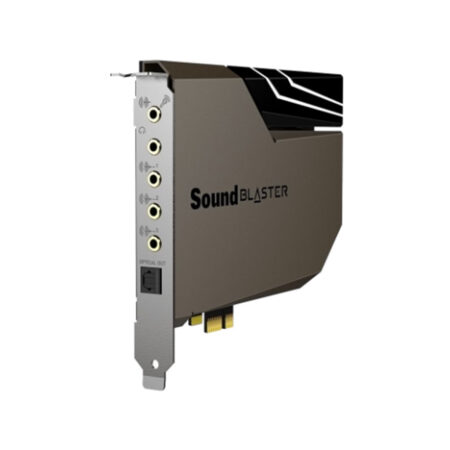

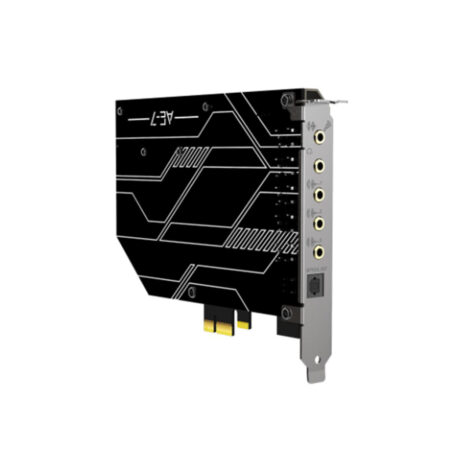

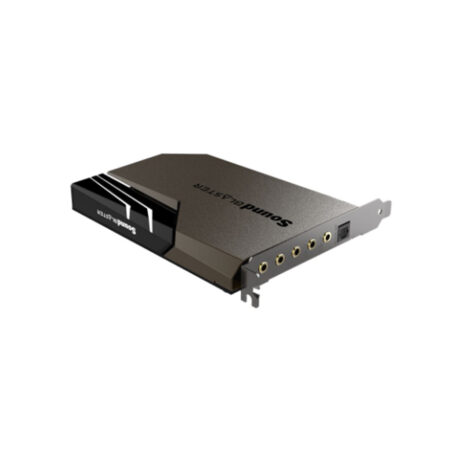

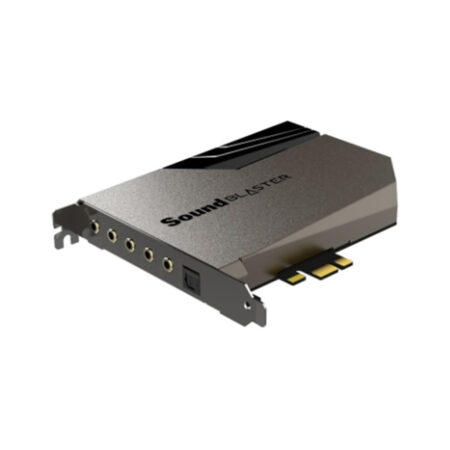

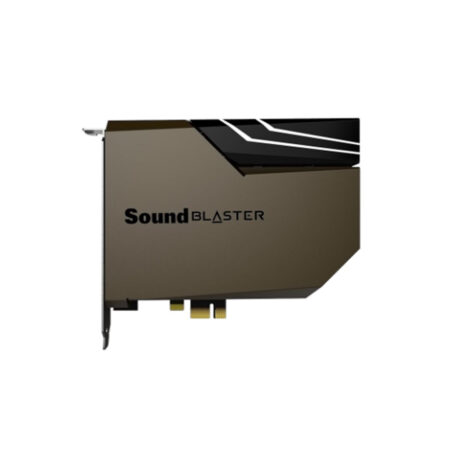

Creative Sound Blaster AE-7 Hi-res PCI-e DAC and Amp Sound Card with Xamp

  • Hi-Res PCIe DAC and Amp
  • Supports 5.1- & 7.1-Channel Surround
  • ESS SABRE-Class 9018 DAC
  • Playback: 32-Bit / 384 kHz PCM & DSD64

32,999.00 Including Tax & Delivery

Compare
SKU:70SB180000000
Weight Main Card: 215g / 7.58 oz, Audio Control Unit (ACM): 284g / 10.02 oz
Dimensions Main Card: 145 x 20 x 128 mm / 5.71 x 0.79 x 5.04 inches, Audio Control Module (ACM): 100 x 92 x 70 mm / 3.94 x 3.62 x 2.76 inches
Headphone Amp Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω, IEM: 16–31Ω (1.9V RMS), Normal: 32–149Ω (3V Rms), High Gain: 150–600Ω (5.6V Rms)
Audio Technology Direct Mode

  • Playback Resolution (Stereo): PCM 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, PCM 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, PCM 32-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, DSD64 (2.8 MHz)
  • Playback Resolution (Optical Out): 16-bit / 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz
Recording Resolution
  • Mic-in: 16-bit / 16.0, 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz, 32-bit / 44.1, 48.0, 88.2, 96.0 kHz
  • AUX-in: 16-bit / 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz
  • What-U-Hear: 16-bit / 44.1, 48.0 kHz, 24-bit / 44.1, 48.0 kHz, 32-bit / 44.1, 48.0 kHz
DSP Mode Playback Resolution (Stereo & Surround 5.1)
16-bit / 44.1, 48.0, 88.2, 96.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0kHz, 32-bit / 44.1, 48.0, 88.2, 96.0kHz
Platform PCI-e

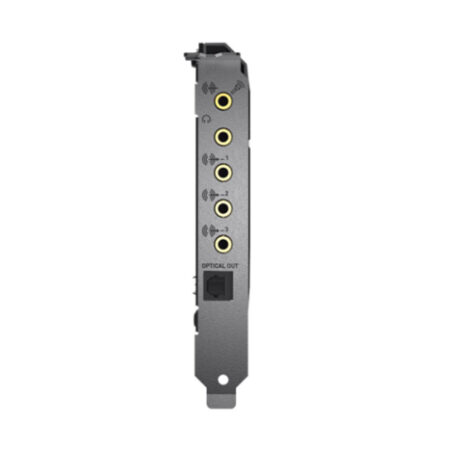

Connectivity Options (Main) 1 x TOSLINK Optical Out, 1 x ⅛″ Rear Out, 1 x ⅛″ Center / Sub Out, 1 x ⅛“ Mic-in / Line-in (Software selectable, default as Mic-in), 1 x ⅛“ Headphone / Headset Out (default as Headphone), 1 x ⅛″ Front-out
Connectivity Options (Accessory) 1 x ⅛″ Mic-in (Mono), 1 x ⅛″ HP Out (3-pole), 1 x ¼″ HP Out (3-pole), 1 x ¼″ Mic-in (Mono)
Power PCI-e bus power
System Requirements
  • Intel® Core™ i3 AMD® equivalent processor
  • Intel, AMD, or 100% compatible motherboard
  • Microsoft® Windows 11, Windows 10 32 / 64-bit, Windows 8.1 / 8.0 32 / 64-bit, Windows 7 32 / 64-bit
  • 1 GB RAM
  • >600 MB of free hard disk space
  • Available PCI-e slot
Package Contents
  • Sound Blaster AE-7 (Main Card)

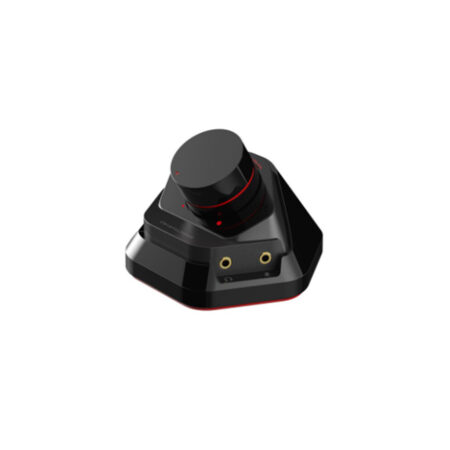

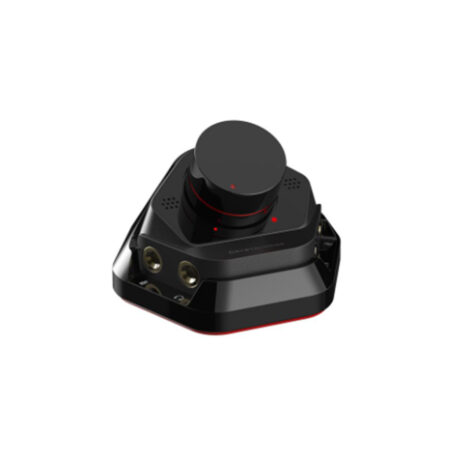

  • Audio Control Module
  • Quick Start Leaflet
  • Warranty Leaflets
Warranty 1-year Limited Hardware Warranty
